Concetti — bagging & end-of-line
Bagging &
bag closing.
Concetti bagging systems — from open-mouth bags to FFS from film reel and big-bag. Precise weighing, automatic filling, and tight bag closure for bulk, granulated, and dusty products across all industrial sectors.
800
bags/h – CONTINUA 6x
4
bagging system types
2000
kg max – big-bag
5–50
kg – standard bag range
Operating principle
Bagging process step by step
01
Bag presentation
A pre-made bag or a bag formed from a film sleeve is positioned on the filling head.
02
Product weighing
Product is dosed to the target weight — the multi-stage weighing system ensures ±0.1% of target value precision.
03
Filling
Product is transferred to the bag — a fast coarse phase and a precise fine phase minimize cycle time while maintaining accuracy.
04
Closing & dispatch
The bag is closed with a thermal weld, stitcher, or twister — then passed to a conveyor, checkweigher, or palletizer.
Bagging systems
Four Concetti systems available from MadejPak

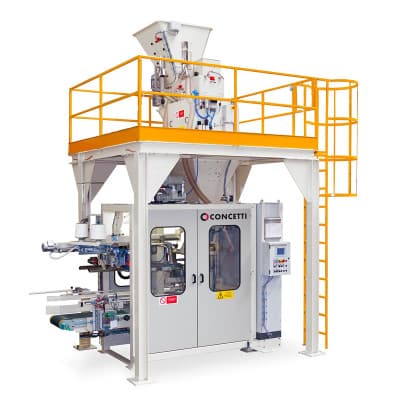

IGF – Open-mouth bagging
Open-mouth bag filling — weighing precision
Automatic open-mouth bag filling machine with gravity or gravimetric-volumetric weighing. Designed for bulk, granulated, and dusty products. Handles paper, PE, and PP bags in the 5–50 kg range. Wide range of sanitary options for the food industry — stainless steel construction, de-dusting systems, and bagging station seals.
Throughput
up to 600 bags/h
Weight range
5–50 kg
Bag types
PP, PE, paper
Weighing
gravimetric / volumetric
Typical products

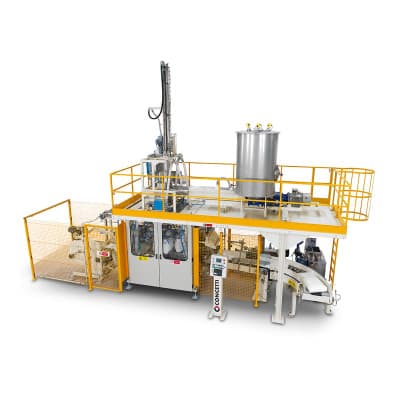

CONTINUA – FFS from film roll
Form-Fill-Seal — packaging from film reel
FFS (Form-Fill-Seal) machine that forms the bag directly from a film sleeve, fills it with product and seals it with a thermal weld — all in one automatic cycle. Eliminates the need to supply pre-made bags and reduces packaging material costs. Available in single- and multi-station versions for different throughput ranges.
Throughput
up to 600 bags/h
Weight range
5–50 kg
Film
PE, PP, laminates
Closure
Thermal weld
Typical products

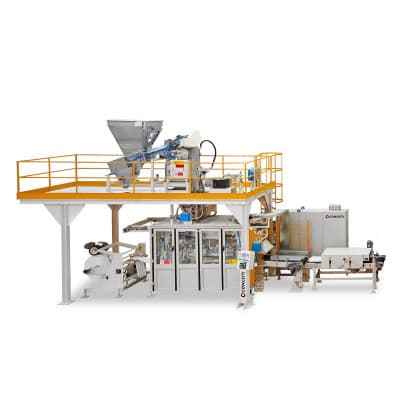

CONTINUA 6x – Six-station FFS
Up to 800 bags/h — cement, premixes, fine products
Six-station FFS machine dedicated to products that are difficult to deaerate — cement, fine premixes, and technical powders. Deaeration system (degassing probes) and air removal system from the top of the bag before welding ensure minimum package dimensions with fully hermetic closure. Automatic format change without operator intervention.
Throughput
up to 800 bags/h
Weight range
10–40 kg
Stations
6
Closure
Hermetic PE
Typical products

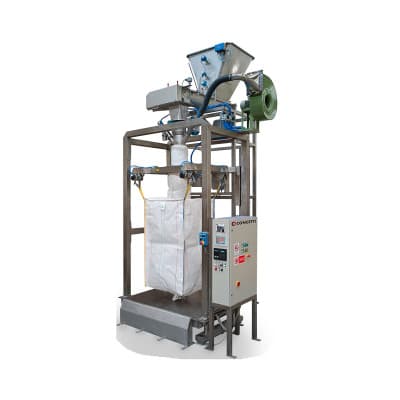

Big Bag – FIBC Filling
Big-bag filling — 30–50 units/h
FIBC (big-bag) filling system with gravimetric weighing on load cells. Designed for bulk and granulated products packed in large formats — from 200 to 2000 kg. Handles 2- and 4-loop configurations, full-open and candy-top bags, and octabins. Options: de-dusting system, pneumatic compaction, vibrating platform, and metal detector.
Throughput
30–50 big-bags/h
Big-bag weight
200–2000 kg
Big-bag height
900–1800 mm
Weighing
Load cells
Typical products
How to choose?
Selecting the right bagging technology
When you need
Paper or open PP bags
→ IGF open-mouth
Flour, feed, fertilizers, salt — pre-made bags
When you need
Lower packaging costs
→ CONTINUA FFS
Product forms bag from roll — no pre-made bag purchase
When you need
Cement, fine powders, premixes
→ CONTINUA 6x
Products hard to deaerate — deaeration and hermetic weld
When you need
Large bulk packaging
→ Big Bag FIBC
Products on pallet — bags 200–2000 kg
Technology partner
Concetti
Italy
Concetti is an Italian manufacturer of comprehensive bagging, palletizing, and end-of-line systems. Specializing in solutions for bulk and granulated products — from open-mouth and FFS systems to big-bag filling and complete packaging lines with palletizing.
Complete lines: weighing → bagging → palletizing → wrapping
Open-mouth, FFS from reel, and big-bag systems in one range
Integration with MadejPak palletizers and conveyors
Industry 4.0 — performance and OEE monitoring as standard
Bagging line — complete integration
Bagging is one stage — MadejPak designs and integrates the complete production flow: from product infeed to a finished stretch-wrapped pallet.
Weighing / dosing
Concetti weighing systems
Bagging
IGF / CONTINUA / Big Bag
Checkweighing
In-line checkweigher
Palletizing
Concetti palletizers / industrial robots
Pallet wrapping
Technowrapp stretch wrapping
Looking for a bagging system for your facility?
We will select the right type of Concetti bagging machine for your product, throughput, and desired automation level.
