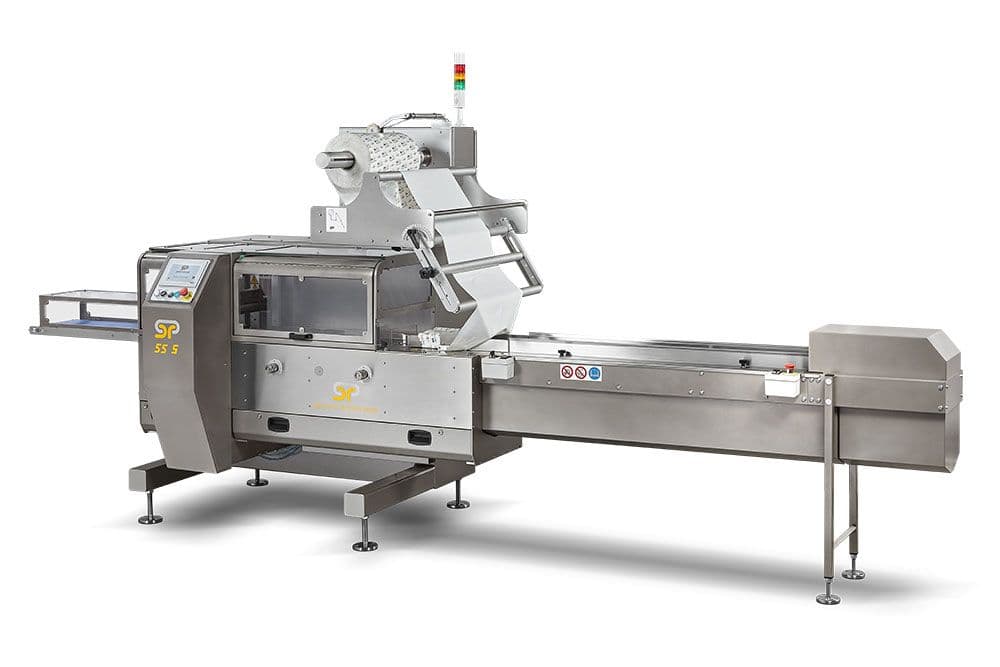

GSP 55 S
Compact machine for industrial packaging.
Horizontal electronic flow pack machine with cantilever frame and three pairs of sealing wheels. Combines robust construction, proven technology and easy operation — for industrial production without unnecessary complexity.
150
packs/min max
3
sealing wheel pairs
200mm
max product width
Hot+Cold
seal
Application
Who is the GSP 55 S for?
01
Companies looking for a compact flow pack machine
The GSP 55 S is ideal where space savings, simple operation and stable performance matter. A good solution for plants that need an industrial-grade machine without an overly complex packaging system.
02
Producers needing a robust and reliable machine
The GSP 55 S is compact yet durable — built for industrial conditions and reliable everyday production.
03
Plants packaging medium-sized products
Handles products up to 200 mm wide and 120 mm tall. Suitable for many food and non-food products requiring classic flow pack packaging.
04
Companies requiring easy operation
Alphanumeric display panel with keyboard for straightforward parameter control. Recipe recall function makes returning to saved settings for repeat products quick and error-free.
05
Producers working with hot-seal and cold-seal films
The GSP 55 S works with both hot-seal and cold-seal packaging materials, increasing flexibility when selecting the right film for each product.
Machine features
Advantages of the GSP 55 S
Compact construction
Industrial packaging quality in a compact footprint. A good choice for plants with limited production space.
Up to 150 packs per minute
Achieves up to 150 packs/min depending on product, film and process settings.
Cantilever frame
Good access to the machine work area — facilitates cleaning, operation and maintenance.
Three pairs of sealing wheels
Longitudinal sealing unit with three pairs of wheels supports stable film guidance and repeatable seals.
Three-motor control
Three motors managed by axis control ensure precise synchronisation and repeatable packaging process.
Recipe memory
Operators can recall saved recipes, reducing setup time when changing product or format.
Electronic thermostat
Electronic temperature control maintains stable sealing parameters matched to the film.
Pack marking option
A printer can be added for best-before date, batch number, production code or other required markings.
Technical data
GSP 55 S specifications
Frame type
Cantilever
Longitudinal sealing
3 pairs of wheels
Throughput
up to 150 packs/min
Max product width
200 mm
Max product height
120 mm
Max film width
520 mm
Packaging materials
Hot-seal and cold-seal
Machine weight
750 kg
Number of motors
3
Control
Axis control
Operator panel
Alphanumeric display + keyboard
Power supply
400 V, 50 Hz, 3 phases + N
Installed power
5 kW
Compressed air
6 bar (dry, filtered)
Air consumption
20 NL/min
Configuration
Available equipment options
The GSP 55 S can be configured with a range of additional options tailored to your specific packaging process.
Photocell for print registration
Printer (date, batch number, production code)
Second film reel holder
Film width extension to 760 mm
Extended infeed conveyor
Film pre-heating bars
Fourth set of sealing wheels
Stainless steel construction (INOX)
Applications
GSP 55 S is suitable for packaging:
Food products
Non-food products
Medium-sized products
Products suited to a compact packaging machine
Hot-seal and cold-seal films
Products requiring marking
Products with repeatable formats
Industrial packaging environments
GSP 55 S at MadejPak
Configuration matched to your process and film.
The GSP 55 S is the solution for companies that need a compact, robust and easy-to-operate flow pack machine for industrial production.
At MadejPak we configure the machine to match the product, film and production conditions. We can add a printer, photocell, second reel holder, extended infeed conveyor, pre-heating bars or stainless steel construction. We provide our own after-sales service and access to spare parts.
Machine enquiry
Send us an enquiry about the GSP flow pack
We will help you select the right model for your product, throughput and packaging requirements. We typically respond within 1 business day.
Model selection for your product and throughput
Pricing and lead time
Machine demonstration available
Line integration support
